YOUR PROJECTS. DETAILED TO PERFECTION.
Experienced detailing for Fabrication & Erection Shops
Fast delivery. full scale services.

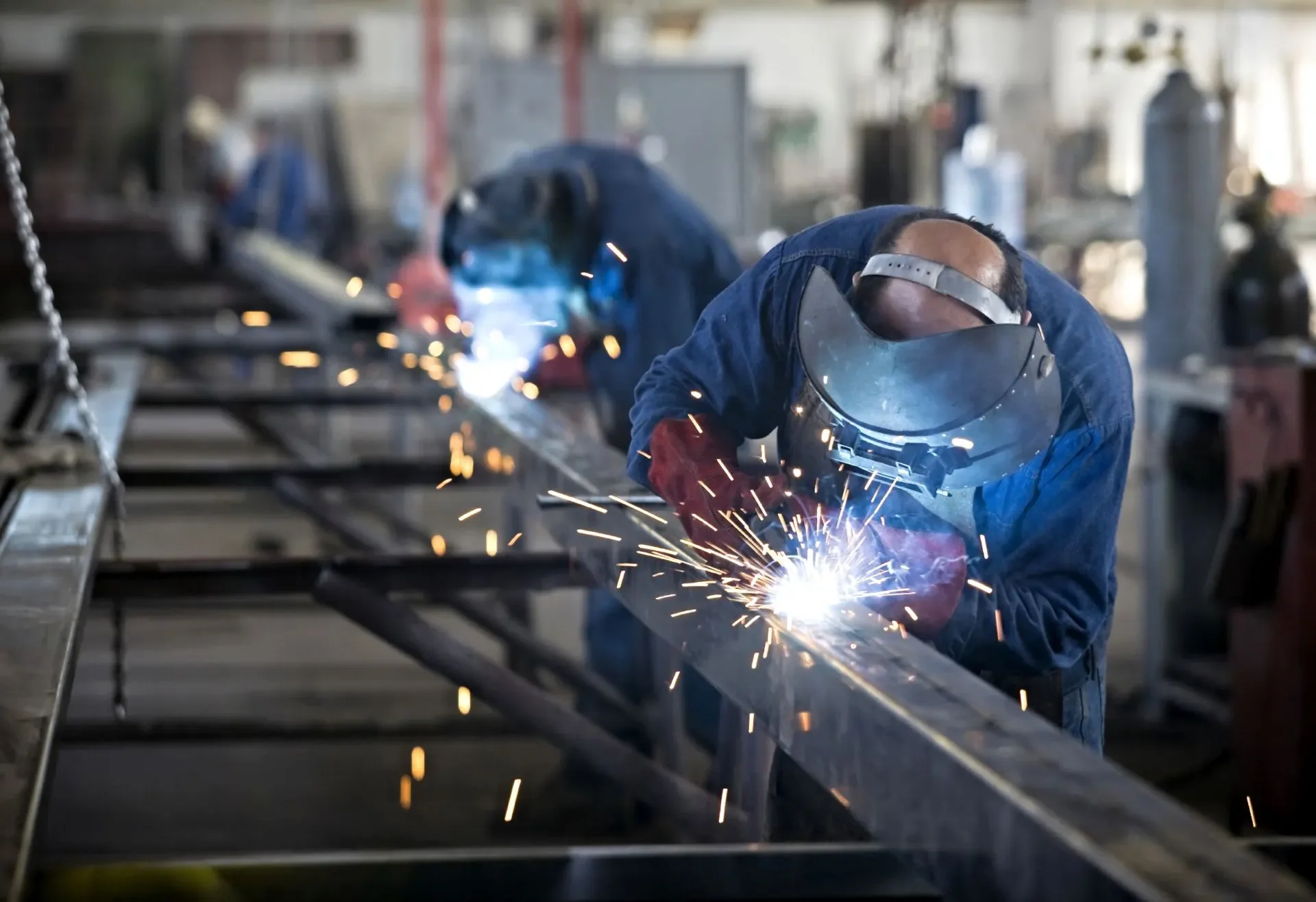

Fabrication ready detailing
Drawings made for real shops — not theory. Every detail is produced with fabrication in mind: correct weld symbols, clear member sizes, proper material callouts, and connection details that match how steel is actually cut, fit, and burned in the shop. You get clean, build‑ready sheets that help your crew move straight from print to production with no guesswork, no rework, and no wasted time.

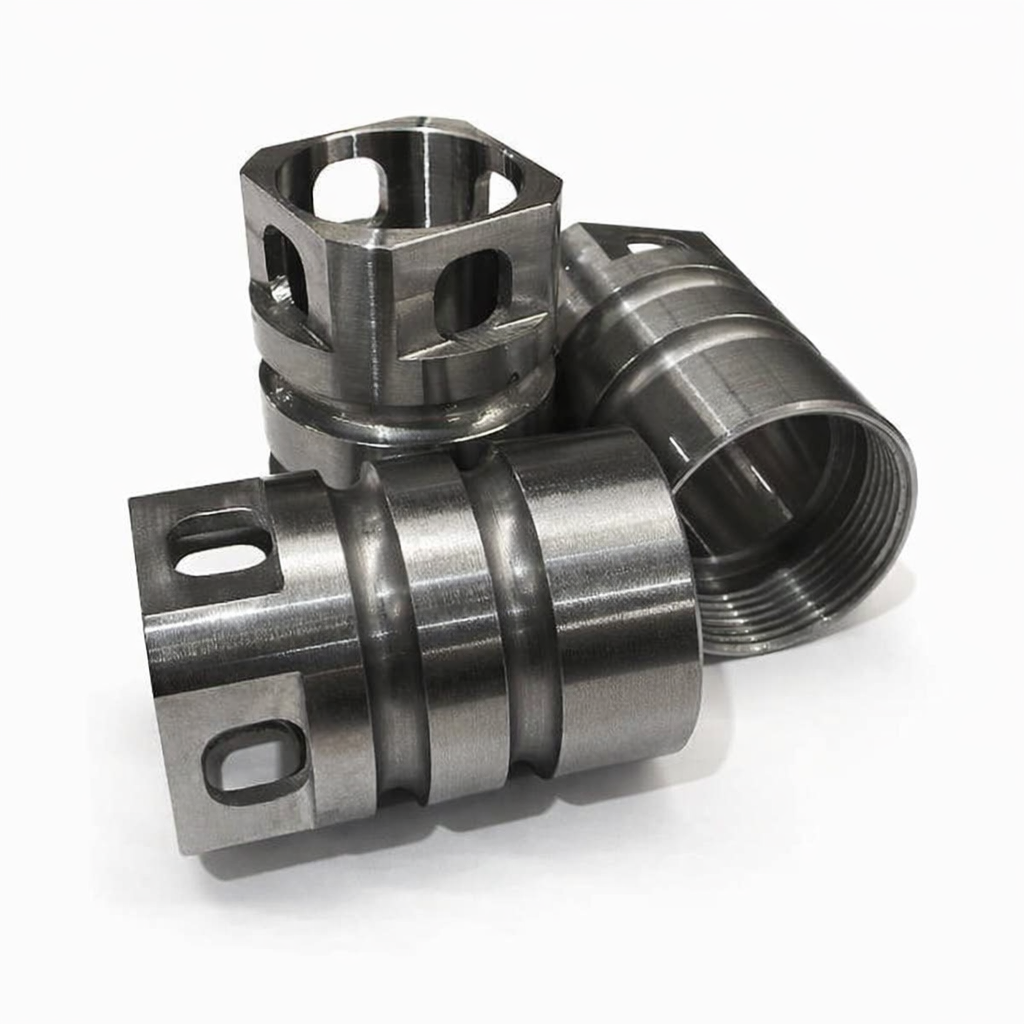

precision machine shop drawings
Drawings that machinists can trust, with proper dimensions, tolerances, and callouts so your team can move straight to production. Fast turnaround, build‑ready details, and drawings made by someone who understands how parts are actually machined.

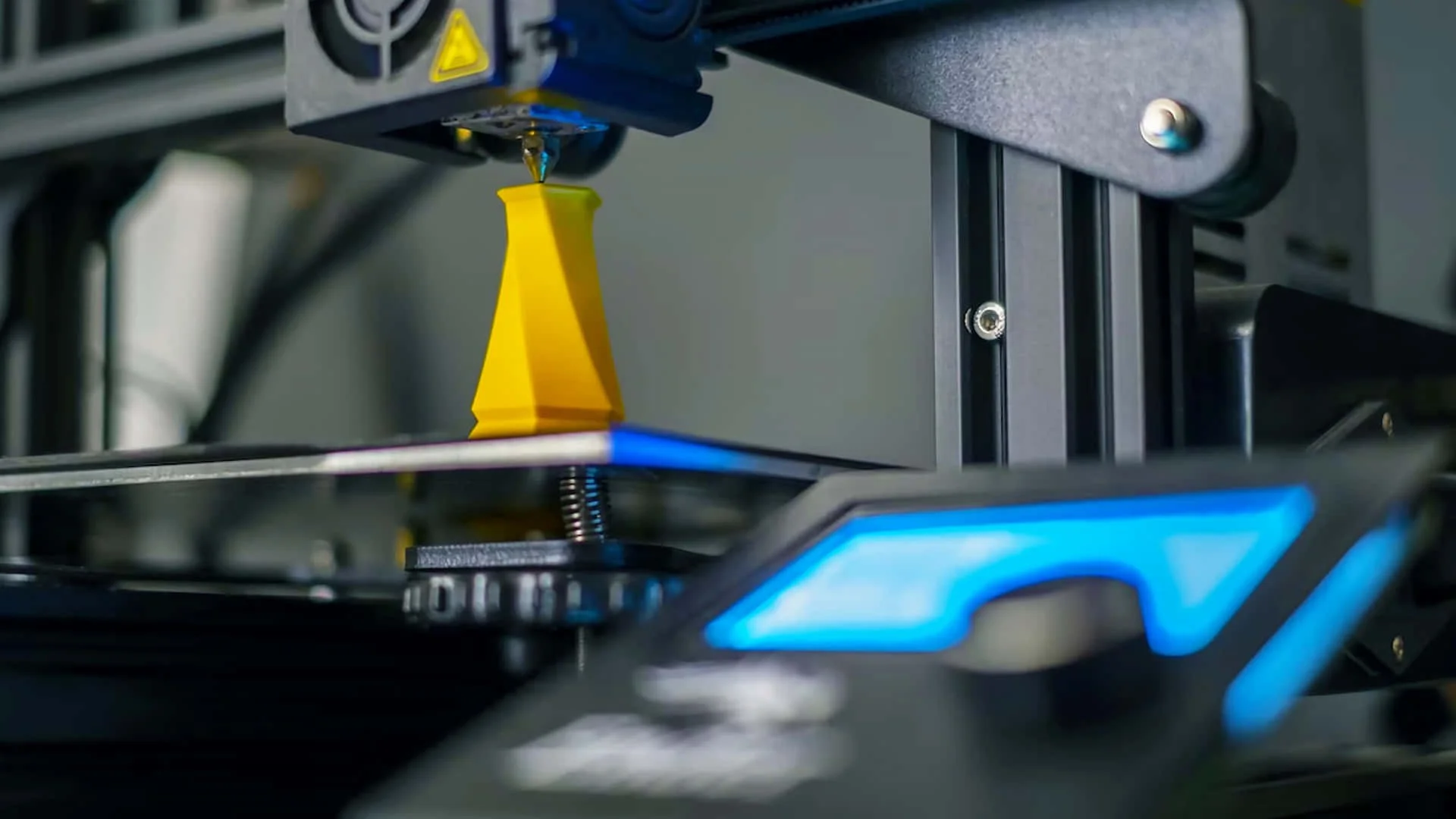

miscellaneous detailing
From custom brackets to 3D‑printed components, providing precise detailing for the one‑off parts and specialty items that keep projects moving. Whether it’s a small welded assembly, a prototype, or a complex printed piece, you get accurate detailing so your team can fabricate, machine, or print with confidence.

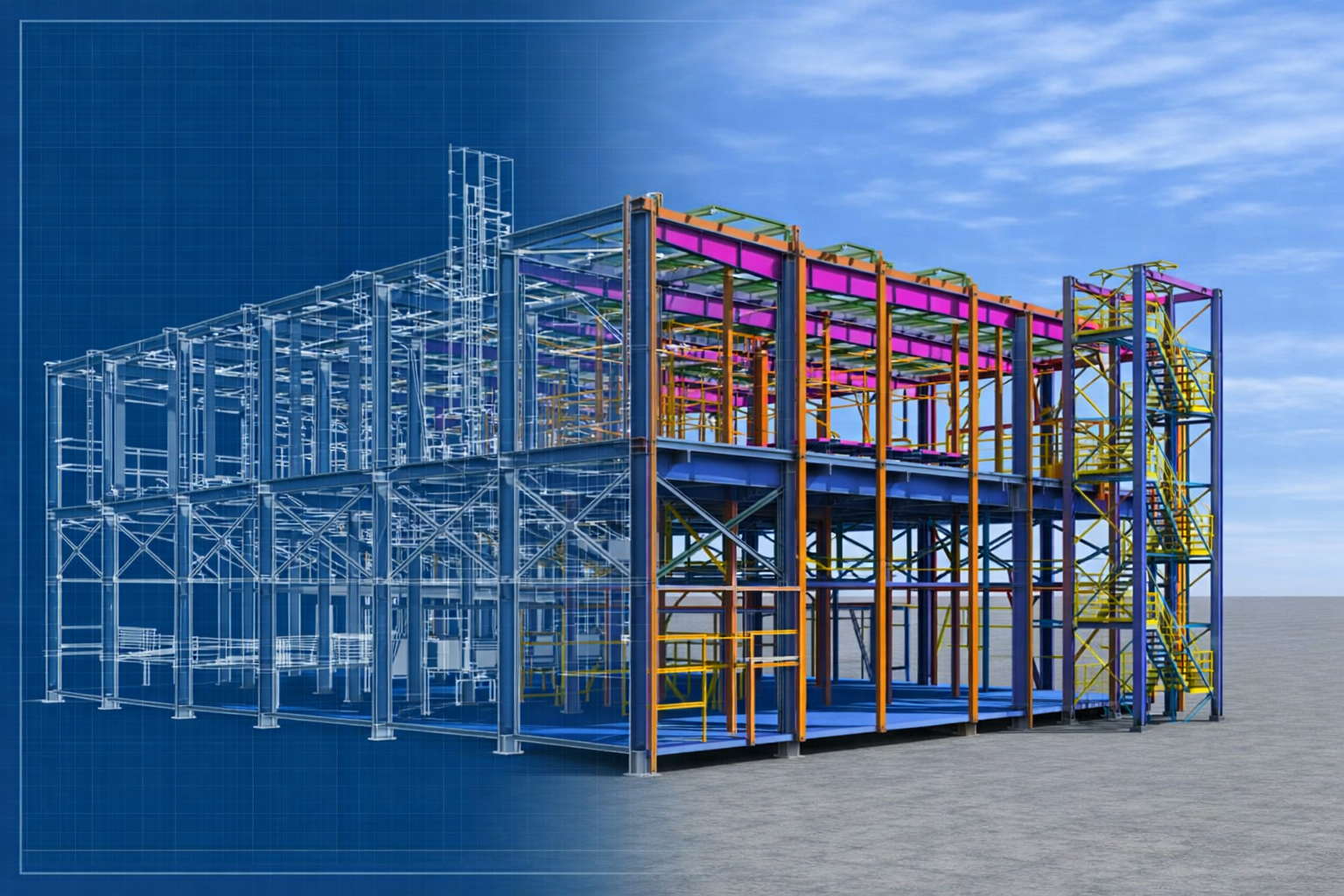

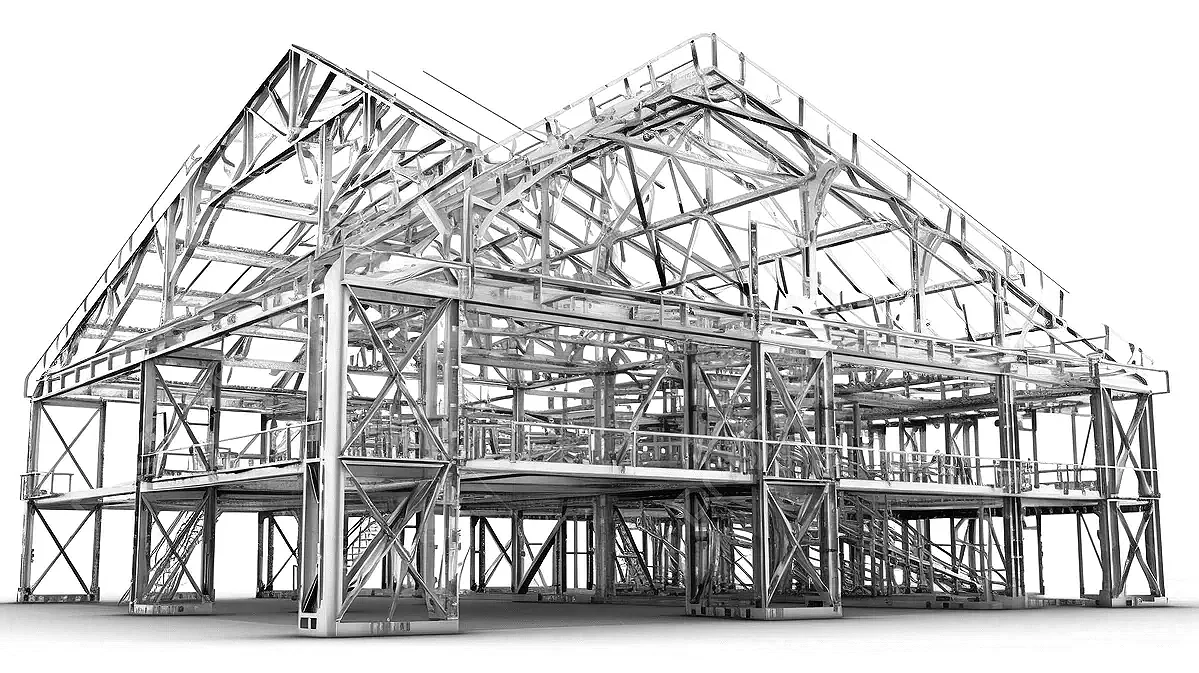

built on precision. driven by experience
At Rode’s Steel Detailing, every line we draw connects directly to the shop floor. With years of hands‑on fabrication and erection experience, we understand what makes a drawing buildable. Our detailing process eliminates guesswork, reduces downtime, and keeps projects moving — from small local shops to large structural builds.
Request a Quote
Tell us about your project and unleash new possibilities.
